LED SMD jumper speedy and safety terminal function 3 pin pitch:4.0mm/0.157in

Name: LED SMD jumper speedy and safety terminal function 3 pin pitch40mm0157in
Brand: starpai
Price: 0.01 USD

LED SMD jumper speedy and safety terminal function 3 pin pitch:4.0mm/0.157in Manufactures

Brand Name : starpai

Model Number : 151-00-01P/02P/03P

Certification : UL,Rohs

Place of Origin : Shenzhen

MOQ : 3000 pcs

Price : US0.01

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500000 pcs per month

Delivery Time : 15-25 work days

Packaging Details : reel or bulk

Material : PA UL94-V0

Pitch : 4mm

Poles : 1,2,3 poles

Rated voltage : 300V

Rated current : 6A

Package : Roll

Contact Now

LED SMD jumper speedy and safety terminal function 3 pin pitch:4.0mm/0.157in

SMD PCB jumper from starpai for pushbutton and push-in CAGE CLAMP® connection, supplied in tape-and-reel packaging for automated assembly or bulk for need.

Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature
Colour: white
Pin spacing: 4mm
Tin-plated copper alloy contacts
1-way terminal block
For Push-buttons connector easy connection and removal of all types of conductors
Group arrangement is possible without losing any poles

........................................................................................

Notice:

Please Contact our directly: sales@starpey.com
( Our company will not be able to directly view your demand information directly through the platform. Please consult our company via email.)

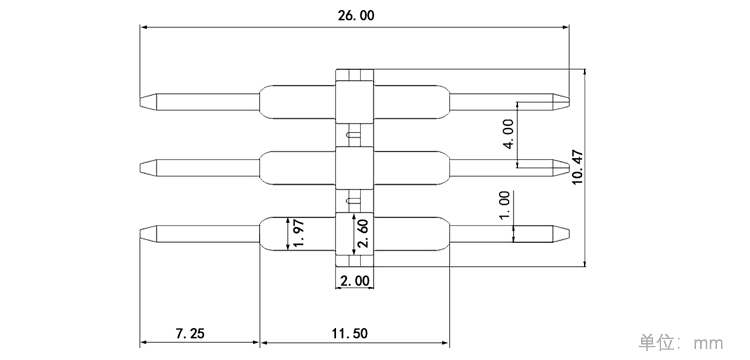

LED SMD jumper speedy and safety terminal function 3 pin pitch:4.0mm/0.157in Images
